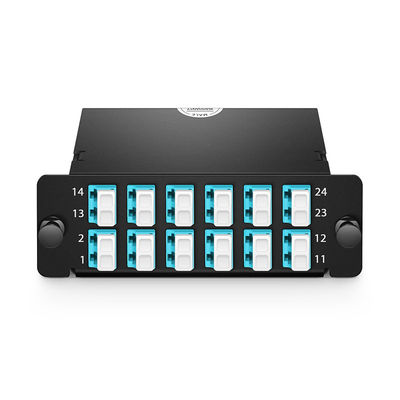

RBTX®-24 Cassette, 24 Fibers OM4 Multimode, Type A, to 12 x LC Duplex (Aqua), 0.35dB max
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fiber Count | 24 Fibers | Front Connector Type | LC UPC Duplex (Aqua) |
|---|---|---|---|
| Rear Connector Type | US Conec MTP® UPC (Pinned) | MTP Adapter | Key Up To Key Down |
| Material Of Sleeve | Zirconia Ceramic | Polarity | Type A |
| Insertion Loss | MTP≤0.35dB, LC≤0.2dB | Standard | RoHS Compliant |
| Fiber Mode | OM4 50/125μm | Number Of LC Port | 12 Ports |
| Number Of MTP® Port | 1 Port | Housing Type | Cassette |
| Material Of Cassette Body | Aluminium (AL5052) | Dimensions (HxWxD) | 1.38''x4.29''x4.64'' (35x109x118mm |
| Return Loss | MTP≥20dB, LC≥30dB | Application | Matching For FHD® Series Enclosures |
Product Description
RBTX®-24 Cassette, 24 Fibers OM4 Multimode, Type A, to 12 x LC Duplex (Aqua), 0.35dB max
RBTX® (FS High Density) series fiber cassette modules offer 24-fiber ® adapter on the rear of the units routed to duplex LC adapters on the front patch field, which interconnect with high density fiber cable assemblies for multiple applications.The MTP®-24 cassette enables high-density, cost-effective 10G deployments and the simplest migration to 40, 100, and even 400G. The cassette allows 96 fiber connections to be deployed in the FHD® series rack unit (1 RU).
