Otdr Fiber Optic Tester Testing Equipment Optical Time Domain Reflectometer
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Event Dead Zone | ≤1.8m | Attenuation Blind Zone | ≤10m |
|---|---|---|---|
| Display Screen | 5.6in Touch Screen | Linearity | ±0.05dB/dB |
| Loss Threshold | 0.05dB | Loss Resolution | 0.001dB |
| Sampling Resolution | 0.125-8m | Sampling Point | 32K |
| Distance Range | 0.3-180km | Typical Real-Time Refresh Time | 0.2s |
| Highlight | otdr fiber optic tester,otdr cable tester,fiber otdr testing equipment |
||
Product Description

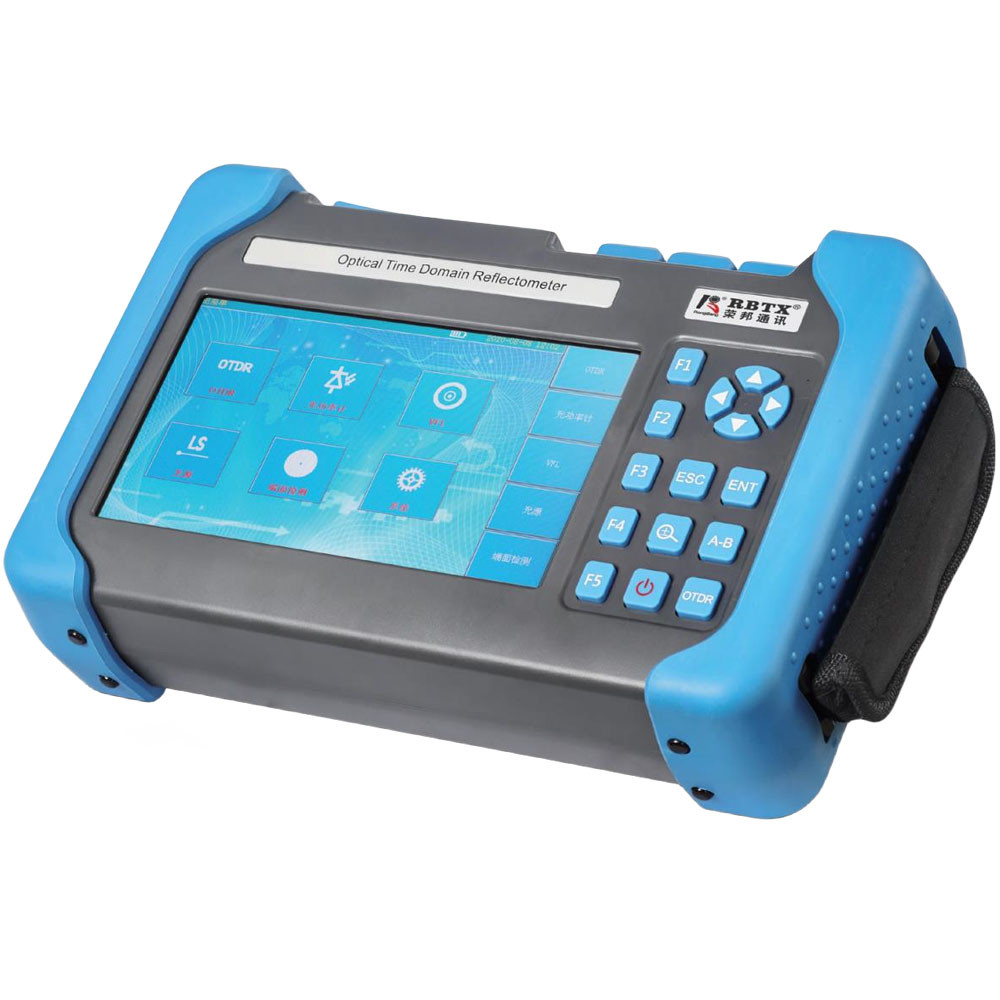

RBTX-330S OTDR series optical time domain reflectometer is a reliable instrument for measuring optical fiber characteristics. This series of products have the characteristics of compactness, lightness and simple operation. They adopt ergonomic shape design and touch LED display, and have data storage function. These data can be analyzed by PC software for optical fiber transmission quality and post-pro-
cessing of measurement results. , Archive, print.
The person who installs and maintains the fiber optic cable looks at the "event points" in the fiber test graph, points out these irregularities in the fiber, locates their location, measures the attenuation between them, and the loss and attenuation uniformity.
Comprehensive optical fiber testing applications, providing multiple wavelength options:
Single mode: 1310/1490/1550/1625nm (with filter),maximum 40dB
Multimode: 850/1300nm, 18/22dB
