1MT6LC2SMFAF 1 MTP To 6 LC Single Mode Fiber Patch Panel 6 Port Fiber Termination Box
| Place of Origin | Dongguan, Guangdong, China |
|---|---|
| Brand Name | RBTX |
| Certification | ISO9001, ISO14001, ISO45001 |
| Model Number | RBTX-1MT6LC2SMFAF |
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Packaging Details | Paper Box |
| Delivery Time | 15 Work Days |
| Payment Terms | 100% Advance T/T EXW Dongguan |
| Supply Ability | 10 Set/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fiber Count | 12 Fibers | Fiber Mode | OS2 9/125um |
|---|---|---|---|
| Front Connector Type | LC/PC Duplex | Number Of LC Port | 6 Ports |
| Rear Connector Type | MTP | Number Of MTP Port | 1 Port |
| MTP Type | Key Up To Key Down | Housing Type | Cassette |
| Material Of Sleeve | Zirconia Ceramic | Material Of Cassette Body | Aluminium |
| Polarity | Type AF | Dimensions(H*W*D) | 1.38"*4.29"*4.64"(35*109*118mm) |
| Insertion Loss | MTP≤0.35dB, LC≤0.2dB | Return Loss | MTP≥20dB, LC≥30dB |
| Standard | RoHS Compliant | Application | Match RBTX Enclosures |
| High Light | 1MT6LC2SMFAF,single mode fiber patch panel,6 port fiber termination box |
||
Product Description

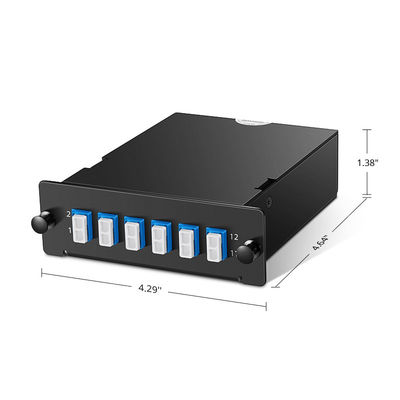

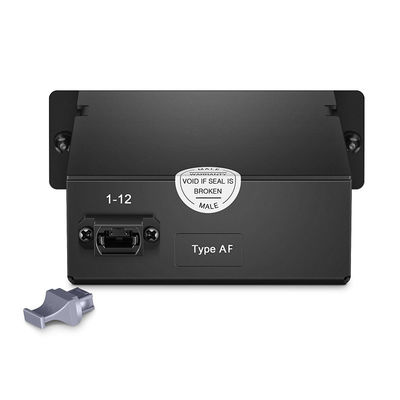

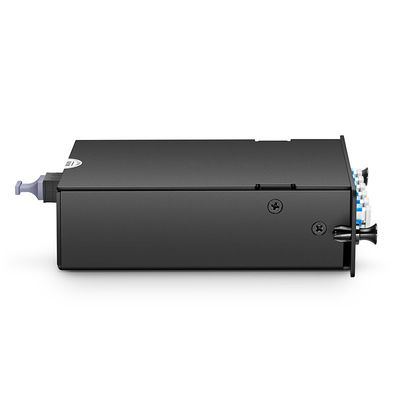

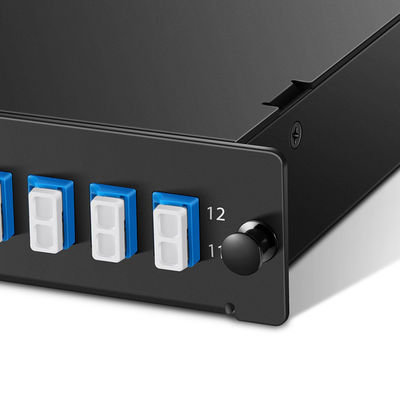

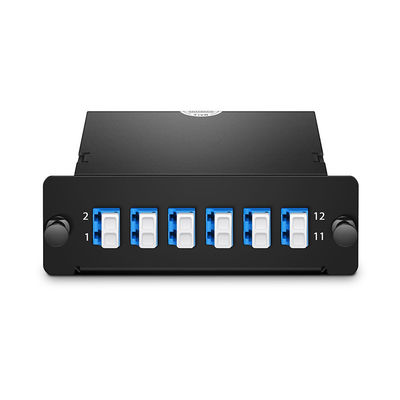

Rongbang RBTX-1MT6LC2SMFAF 1 MTP to 6 LC Duplex Cassette 12 Fibers OS2 Single Mode Type AF
Welcome to Shenzhen Rongbang Fiber Optic Equipment Co. Ltd., your trusted provider of cutting-edge fiber optic solutions. We are pleased to introduce our high-quality Fiber Cassette Modules, developed and produced by our esteemed factory, Dongguan Rongbang Fiber Optic Equipment Co. Ltd. These modules are designed to provide efficient and reliable fiber optic connectivity, offering superior performance and versatility.
Features:
High Density Connectivity: Our Fiber Cassette Modules feature a high-density design, allowing for the efficient management and organization of fiber optic connections. They maximize the utilization of available space, making them ideal for applications where space is limited.
Modular and Scalable: The modular design of our Fiber Cassette Modules enables easy customization and scalability. They can be easily integrated into various fiber optic systems and can adapt to changing network requirements, allowing for future expansion and upgrades.
Superior Fiber Protection: Our modules provide superior protection for delicate fiber optic cables and connectors. They feature robust construction and advanced cable management, ensuring proper strain relief, bend radius control, and protection against environmental factors such as dust and moisture.
Efficient Cable Management: The Fiber Cassette Modules are designed with efficient cable management in mind. They feature well-organized routing paths and labeling systems, facilitating easy cable tracing, maintenance, and troubleshooting.
Quick Installation and Maintenance: Our modules are designed for quick and hassle-free installation and maintenance. They incorporate user-friendly features such as tool-less connector termination, easily accessible adapter panels, and front-facing connectivity, minimizing downtime and reducing installation complexity.
Technical Parameters:
Our Fiber Cassette Modules boast the following technical parameters:
| Parameter | Value |
| Fiber Mode | OS2 9/125um |
| Fiber Count | 12 Fibers |
| Number of LC Port | 6 Ports |
| Number of MTP Port | 1 Port |
| Polarity | Type AF |
| Trunk Method | Used with the Method A Trunk |
| Cassette Method | MTP Cassettes (A to AF) |
Applications:
The Fiber Cassette Modules find applications in various areas, including:
Data centers and server rooms
Telecommunication networks
Enterprise networks
Fiber optic distribution frames
Fiber optic patch panels
Network cabinets and enclosures
Customization:
At Shenzhen Rongbang Fiber Optic Equipment Co. Ltd., we understand that specific requirements may vary. Therefore, we offer customization options for our Fiber Cassette Modules to meet your unique needs. Our dedicated team collaborates closely with you to tailor the modules according to your specific preferences, including fiber capacity, connector type, or other specifications.
Support and Service:
At Shenzhen Rongbang Fiber Optic Equipment Co. Ltd., we are committed to providing exceptional support and service to our customers. Our knowledgeable and responsive customer support team is available to assist you with any inquiries or concerns you may have regarding our Fiber Cassette Modules. We also offer comprehensive after-sales services, including technical support, training, and warranty coverage, ensuring your complete satisfaction with our product.
Packing and Shipping:
To ensure the safe and secure delivery of our Fiber Cassette Modules, we utilize reliable packaging materials and shipping methods. Our team at Shenzhen Rongbang Fiber Optic Equipment Co. Ltd. ensures meticulous packaging and handling to protect the modules during transit, ensuring their arrival in excellent condition.
Frequently Asked Questions:
Q: What are Fiber Cassette Modules used for?
A: Fiber Cassette Modules are used for efficient and reliable fiber optic connectivity. They provide high-density connectivity, superior fiber protection, and efficient cable management, making them ideal for various applications such as data centers, telecommunication networks, and enterprise networks.
Q: Can the Fiber Cassette Modules be customized?
A: Yes, we offer customization options for our Fiber Cassette Modules. Our team will work closely with you to tailor the modules according to your specific preferences, including fiber capacity, connector type, or other specifications.
Q: What type of support and service do you offer for the Fiber Cassette Modules?
A: We provide comprehensive support and service for our Fiber Cassette Modules, including responsive customer support, technical assistance, training, and warranty coverage. Our goal is to ensure your complete satisfaction with our product.
Q: Are the Fiber Cassette Modules easy to install and maintain?
A: Yes, our Fiber Cassette Modules are designed for quick and hassle-free installation and maintenance. They incorporate user-friendly features such as tool-less connector termination and easy access to adapter panels, making installation and maintenance processes efficient and straightforward.
