Rongbang RBTX-MP4PP02 1U 19" 4 Slots HD Modular Sliding Panel 48 SC 96 LC Interface for Data Center Enterprise Network
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mounting Type | Rack 19" | Height Unit | 1U |
|---|---|---|---|
| Material | Cold Rolled Steel | Housing Colour | Black |
| Application | Indoor IP20 | Lockable | No |
| Dimension (W*D*Hmm) | 482*205*44 | Net Weight | 3KG |
| Opening Type | Sliding Tray With 45° Open Working Angle | Access Type | Front Access |
| Front Cable Management | Optional Hingged Drop-Down Door | Cable Entry Direction | Rear |
| Rear Cable Management | 6 Cable Entries | Slot Typpe | HD Modules And HD Plates |
| Number Of Slots | 4 | Fiber Capacity | LC Interface 96 Ports |
| Highlight | 1U 19” Sliding Panel,4 Slots Sliding Panel,HD Modular Sliding Panel |
||
Product Description

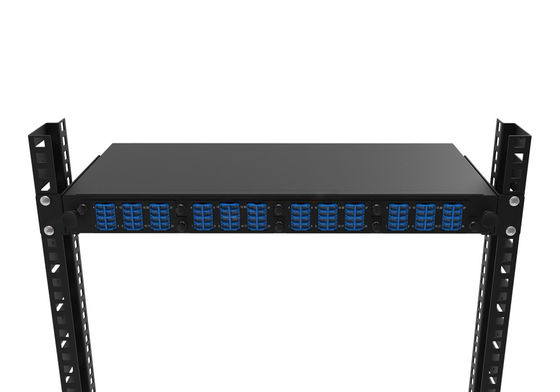

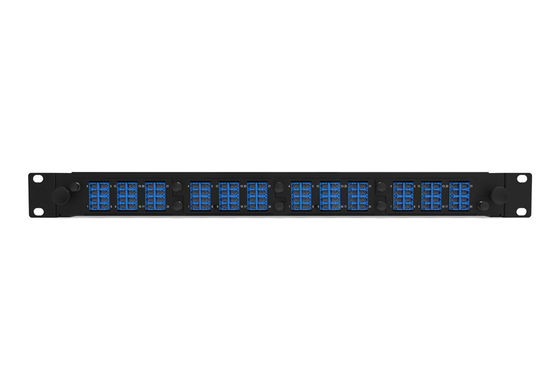

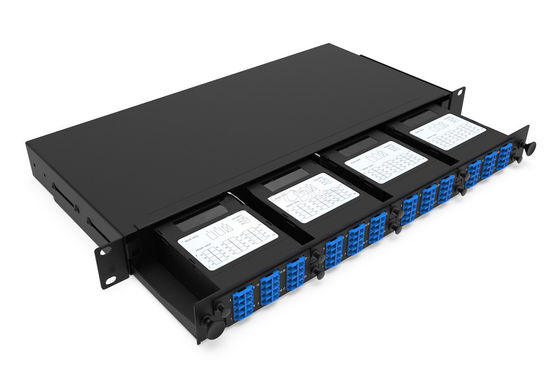

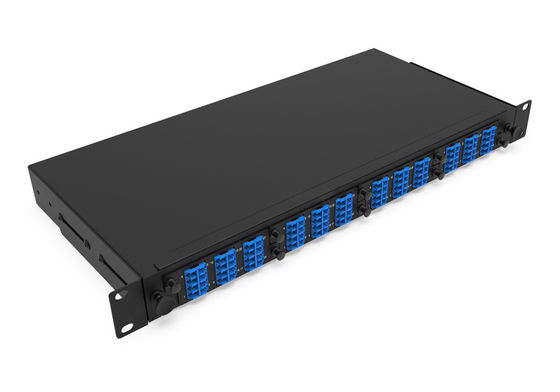

Rongbang RBTX-MP4PP02 1U 19" 4 Slots High Density Sliding Panel 48 SC 96 LC Interface
Welcome to Shenzhen RongBang Fiber Equipment Co., Ltd., your trusted provider of fiber optic solutions. We are pleased to introduce our high-quality rack mount housing, developed and produced by our esteemed factory, Dongguan RongBang Fiber Equipment Co., Ltd. These modules are designed to provide efficient and reliable fiber optic connectivity, offering superior performance and versatility. RBTX high density modular sliding patch panel accepts up to 4 HD modules or HD pass-thru adapter plates for a total of 96 ports with LC and 48 ports with SC configuration. HD optical fiber modular panel for multi-application with MPO system, pre-terminated cables or conventional splicing.

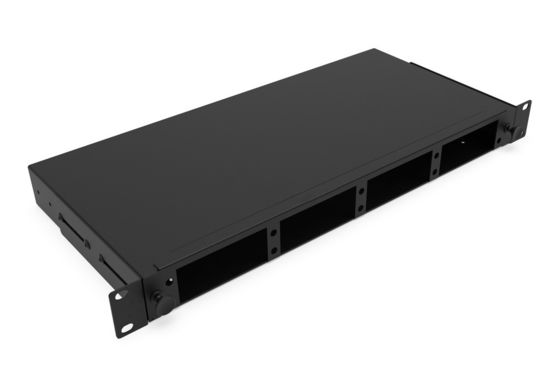

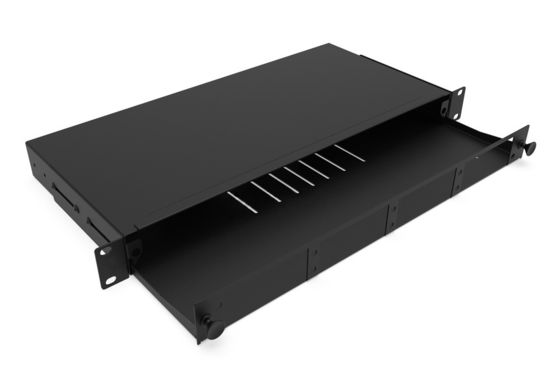

Easy front access with hinged cable management bar which provides protection of the patch cords as well as labelling. Sliding patch panel is supplied unloaded and the modules and adapters plates are supplied separately.
Bullet Point
● 4 Slots HD in 1U space
● Up to 96 interface in LC or 48 interface in SC
● Modular with MPO, splice cassettes or adapter plates
● RoHS, REACH and SVHC
● Data center & enterprise network
● Indoor application
● Accepts indoor and outdoor pre-terminated cables and MTP trunks and spplicing
Features:
High Density Connectivity: Our rack mount housing modular panel feature a high-density design, allowing for the efficient management and organization of fiber optic connections. They maximize the utilization of available space, making them ideal for applications where space is limited.
Modular and Scalable: The modular design of our fiber cassette modules enables easy customization and scalability. They can be easily integrated into various fiber optic systems and can adapt to changing network requirements, allowing for future expansion and upgrades.
Superior Fiber Protection: Our modules provide superior protection for delicate fiber optic cables and connectors. They feature robust construction and advanced cable management, ensuring proper strain relief, bend radius control, and protection against environmental factors such as dust and moisture.
Efficient Cable Management: The fiber cassette modules are designed with efficient cable management in mind. They feature well-organized routing paths and labeling systems, facilitating easy cable tracing, maintenance, and troubleshooting.
Quick Installation and Maintenance: Our modules are designed for quick and hassle-free installation and maintenance. They incorporate user-friendly features such as tool-less connector termination, easily accessible adapter panels, and front-facing connectivity, minimizing downtime and reducing installation complexity.
Technical Parameters:
Our rack mount housing modular panel boast the following technical parameters:
| Parameter | Value |
| Mounting Type | Rack 19 inch |
| Height Unit | 1U |
| Material | Cold Rolled Steel |
| Housing Color | Black |
| Application | Indoor IP20 |
| Lockable | No |
| Dimensions (W*D*Hmm) | 482×205×44 |
| Net Weight | 3kg |

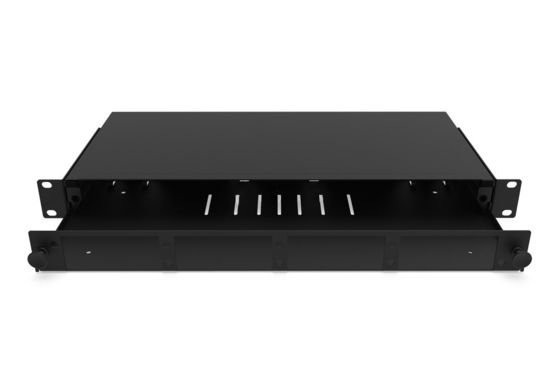

| Opening Type | Sliding Tray with 45° Open Working Angle |
| Access Type | Front Access |
| Front Cable Management | Optional Hinged Drop-Down Door |
| Cable Entry Direction | Rear |

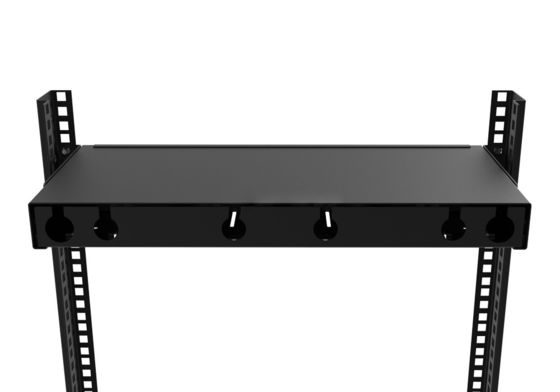

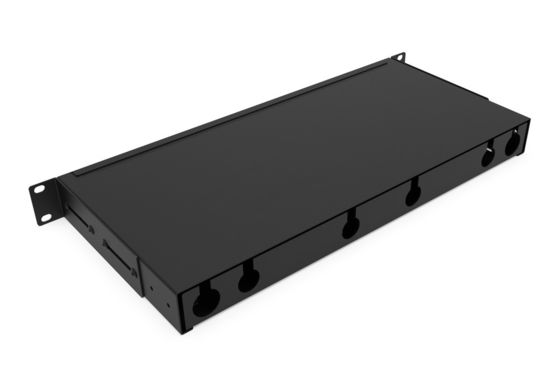

| Rear Cable Management | 6 Cable Entries |
| Slot Type | HD Modules and HD Plates |
| Number of Slots | 4 |
| Fiber Capacity | 96 Ports LC Interface |
Applications:
The fiber cassette modules find applications in various areas, including:
Data centers and server rooms
Telecommunication networks
Enterprise networks
Fiber optic distribution frames
Fiber optic patch panels
Network cabinets and enclosures
Customization:
At Shenzhen RongBang Fiber Equipment Co., Ltd., we understand that specific requirements may vary. Therefore, we offer customization options for our fiber cassette modules to meet your unique needs. Our dedicated team collaborates closely with you to tailor the modules according to your specific preferences, including fiber capacity, connector type, or other specifications.
Support and Service:
At Shenzhen RongBang Fiber Equipment Co., Ltd., we are committed to providing exceptional support and service to our customers. Our knowledgeable and responsive customer support team is available to assist you with any inquiries or concerns you may have regarding our fiber cassette modules. We also offer comprehensive after-sales services, including technical support, training, and warranty coverage, ensuring your complete satisfaction with our product.
Packing and Shipping:
To ensure the safe and secure delivery of our fiber cassette modules, we utilize reliable packaging materials and shipping methods. Our team at Shenzhen RongBang Fiber Equipment Co., Ltd. ensures meticulous packaging and handling to protect the modules during transit, ensuring their arrival in excellent condition.
Frequently Asked Questions:
Q: What are fiber cassette modules used for?
A: fiber cassette modules are used for efficient and reliable fiber optic connectivity. They provide high-density connectivity, superior fiber protection, and efficient cable management, making them ideal for various applications such as data centers, telecommunication networks, and enterprise networks.
Q: Can the fiber cassette modules be customized?
A: Yes, we offer customization options for our fiber cassette modules. Our team will work closely with you to tailor the modules according to your specific preferences, including fiber capacity, connector type, or other specifications.
Q: What type of support and service do you offer for the fiber cassette modules?
A: We provide comprehensive support and service for our fiber cassette modules, including responsive customer support, technical assistance, training, and warranty coverage. Our goal is to ensure your complete satisfaction with our product.
Q: Are the fiber cassette modules easy to install and maintain?
A: Yes, our fiber cassette modules are designed for quick and hassle-free installation and maintenance. They incorporate user-friendly features such as tool-less connector termination and easy access to adapter panels, making installation and maintenance processes efficient and straightforward.
