xProduct Details
| Voltage | AC220~230V 50/60Hz | Power | 115W |
|---|---|---|---|
| Working Temperature | 10~40℃ | Relative Humidity | 15%~85% |
| Noisy Without Load | <50dB | Working Vibrations | 0.25g, 5~100Hz, 10min |
| Stopped Vibrations | 0.50g, 5~100Hz, 10min | Impact Tolerable | 50mm Falling Off |
| Rotation Speed | 0~200r/min | Storing Temperature | -40~85℃ |
| Vibrations | 1.0g 5~100Hz45min | Dimension | 390*240*580mm |
| Highlight | fiber optic polishing machine,fiber polishing machine,optical fiber polishing machine |
||
Product Description

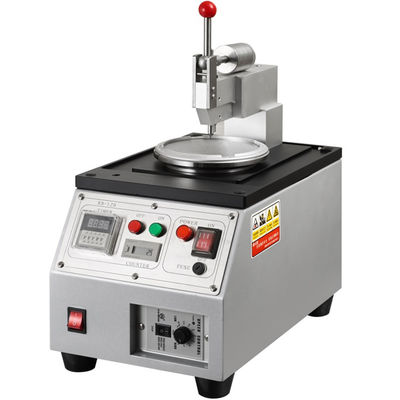

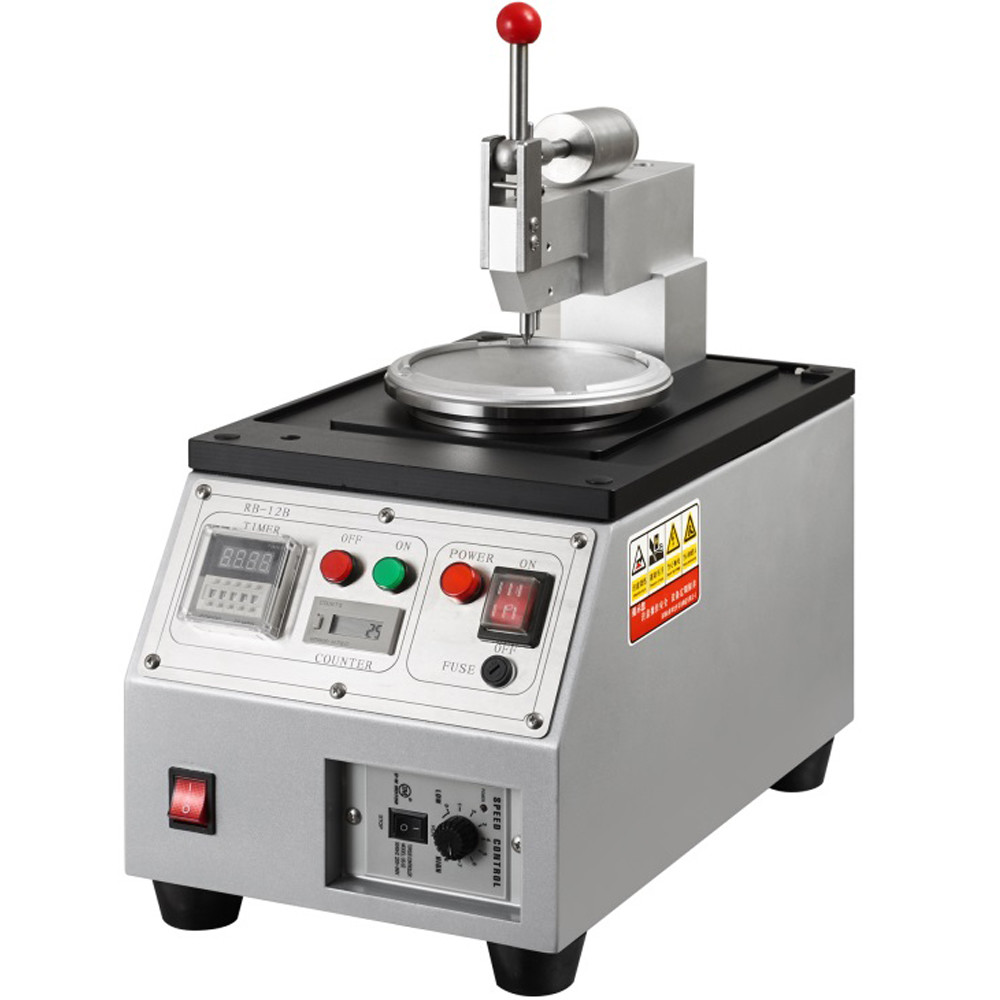

Rongbang RBTX Center Pressed Fiber optio Polishing Machine
Center Pressed Polishing Machine
RBTX-12B its polishing speed can be adjusted between 0-200RPM.Polishing disc is dia. 127mm.Use annoy gear to drive; thus the machine has a more stable performance.
It can polish various types of standard fiber optical connectors such as: FC/UPC, SC/UPC, ST/UPC, LC/UPC, MU/UPC, FC/APC, SC/APC, MTRJ, E2000 etc.
High-precision mechanic coordination, independent rotation and revolution ensure the consistent and uniformity of polishing performance.
Water-proof and professional structure design ensures the safe and reliable using of the machine.
Pressure unload, fixture & polishing film exchange are very convenient.
Polishing round and polishing time can be set and recorded automatically.
Use water during polishing.Save consumables and polishing cost is low. High working efficiency (group working is allowed). Product quality keeps consistent and repair rate is low.
