Indoor Fiber Optic Cable Automatic Wire Measuring And Cutting Machine Processing
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Supply | AC220~240V | Power Frequency | 50/60Hz |
|---|---|---|---|
| Total Power | 1200W | Control Way | PLC Touch Screen |
| Applied Cable | 2.0~3.0 Single/Dual Core Fiber Cable | Cutting Length | ≤999m |
| Length Tolerance | 3‰ | Cutting Speed | 3m/s |
| Cable Discharge Way | Automatic | Cable Collecting Way | Single Disk Linkage |
| Weight | 290kg | Dimension | 200*100*160cm |
| Highlight | automatic wire measuring and cutting machine,automatic wire cutter machine,automatic wire processing machine |
||
Product Description

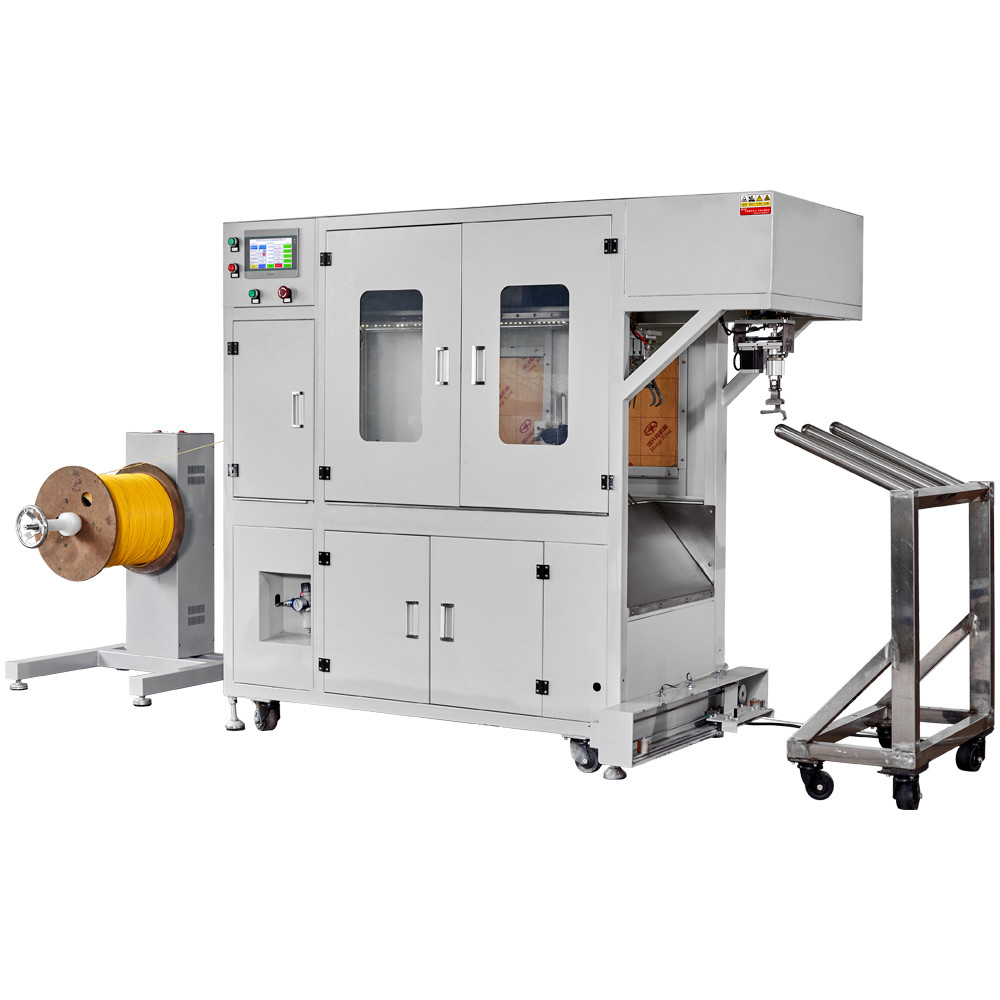

Rongbang RBTX-450Z Automatic Cable Cutting Machine for Indoor Fiber Optic Cable
RBTX-450Z is suitable for customizing the cutting process of fiber optic cables, including the length, number of cables, number of cutters, and other functions. The cable laying speed and cable retraction speed can be adjusted at will from 0 to 100% (it is recommended to use 60%), and the size and diameter of the reel cable can be adjusted at will.
This device has functions such as no cable, no tie wire dynamic alarm, automatic length tracking memory, memory of the total length of the optical cable, tail fiber cutting, and so on.
The control system of this equipment adopts an intelligent PLC module control. The original factory pneumatic components (Yadeke) of this equipment have been registered for customs inspection exemption and can be imported and exported at any time
