30 Line Indoor Tight Buffer Fiber Optic Cable Manufacturing Machine Equipment
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | tight buffer fiber optic cable,cable manufacturing machine,cable manufacturing equipment |
||
|---|---|---|---|
Product Description
Rongbagn 30 Line Indoor Fiber Cable Production Line Tight Buffer Line
Features:

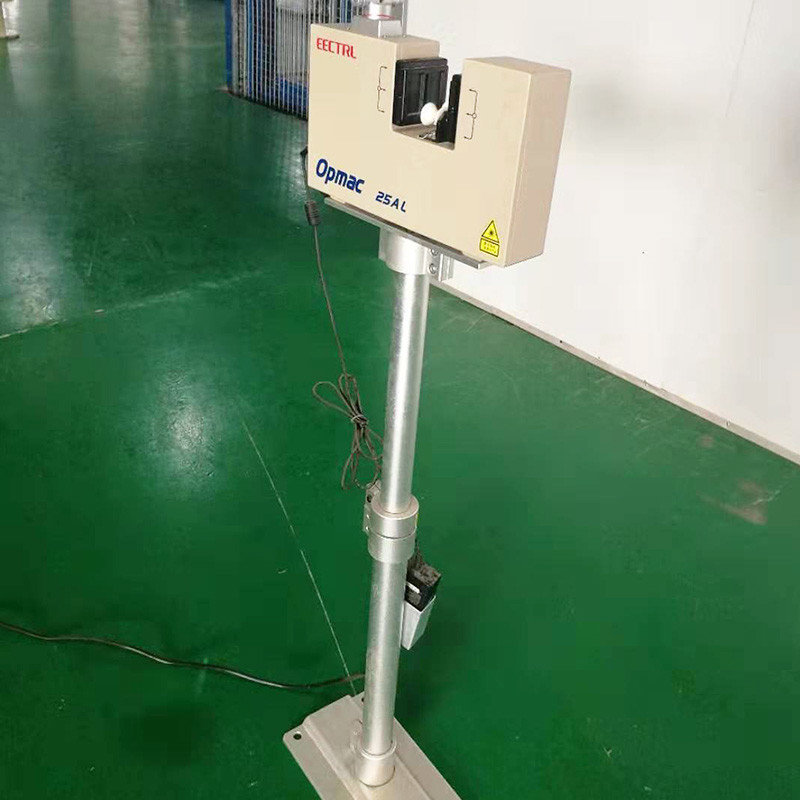

1. Precision special small extruder and precision fine adjustment machine head. The outer diameter of the cable is uniform, the core degree is high, the outer diameter is automatically feedbacked, and the cable diameter curve can be traced back.
2. The vacuum system is adjustable in vacuum and can be linked to the line speed.
3. Optical fiber is motorized released. The tension is precisely constant and the additional loss is small.
4. Temperature control is controlled by imported OMRON temperature control meter, and temperature control is accurate.
5. Double-reels automatic change, the operation is stable and reliable.
6. International industrial computer technology control system with high degree of automation, it can be linked with MES, ERP systems, real time tracking and managing production.
7. The main control systems and components are international famous brands, and the production line has high stability and reliability.
Application:
This Optical fiber cable production line makes fiber optic cable buffer 0.6/0.8/0.9mm. Cable structure: bare fiber + LSZH/PVC sheath, and other similar cables.
This line can be used for steel wire plastic coating, steel wire diameter 1.0mm max. which is mainly used in FTTH drop cable production.
Machine component configuration is adjustable according process request.
Technical Parameters
| Parameter | Value |
| Styructure Speed | 350m/min |
| Production Outer Diameter | 0.6-0.9mm |
| Fiber Tension | 0.4N-1.2ZN±0.05N |
| Reel | Standard 25km & 50km discs |
| Real Diameter | 200 ~ 400mm |
| Production Line Length | ≤22m |
| Power Supply | 35KVA, AC380V ± 10% 50Hz 3 Phase 5 Wire |
| Normal Machine Power Consumes | 17kW/h |
| Production Capacity | 18km/h (PVC Buffer); 12km/h (LSZH Buffer) |
Line Configuration

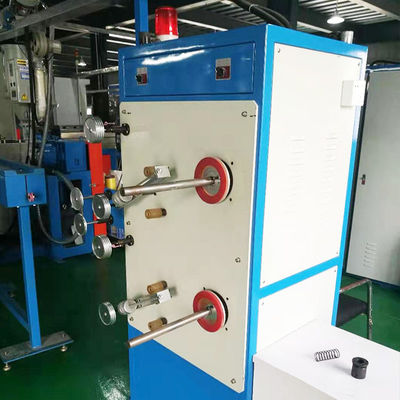

01. Two heads fiber motorized pay-off;

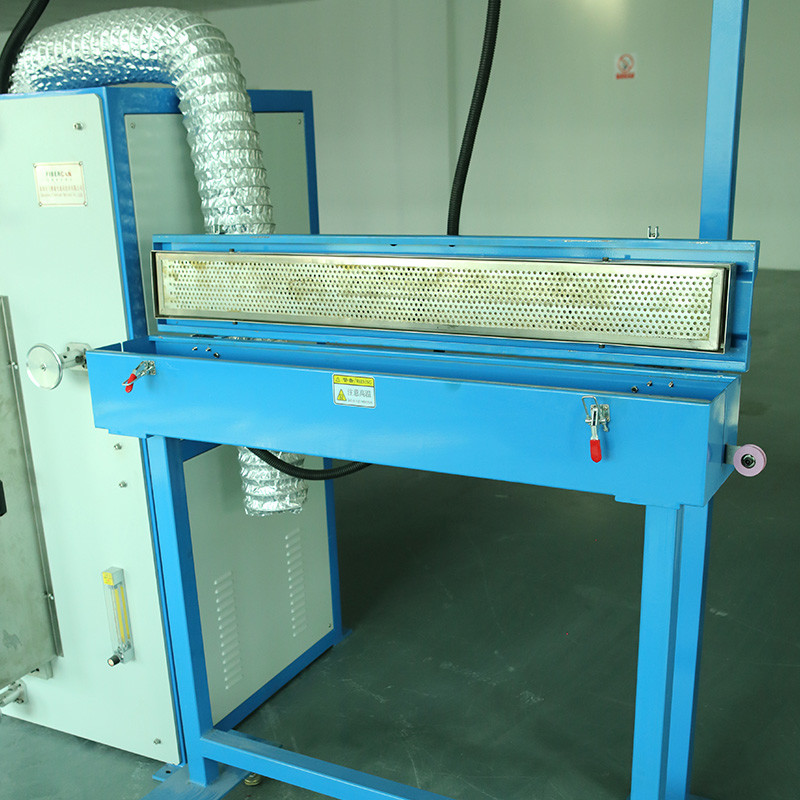

02. Fiber Preheating oven;
03. 25KG dryer and hopper

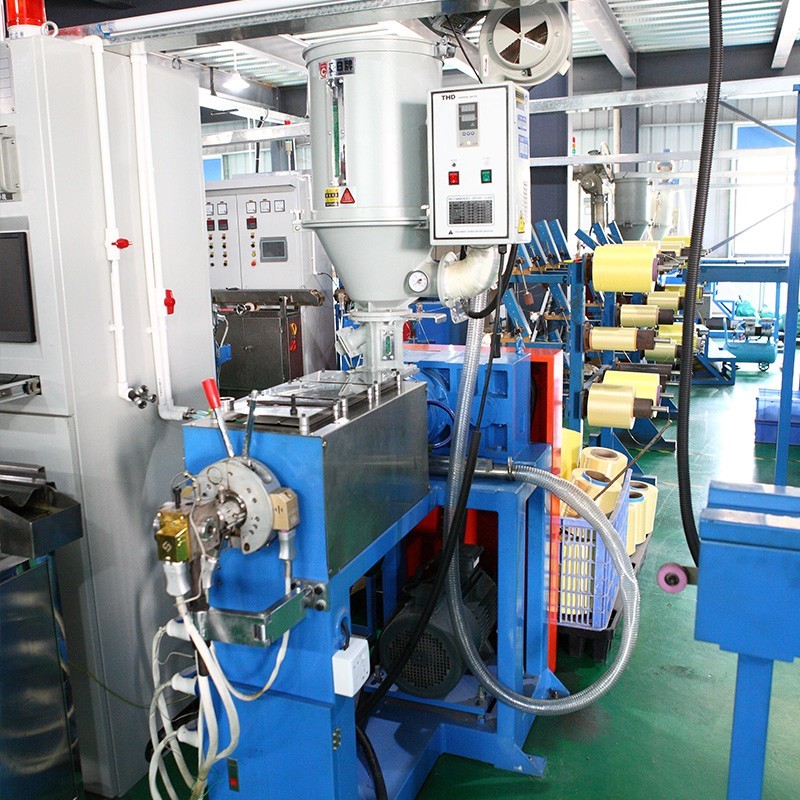

04. 30 Extruder;

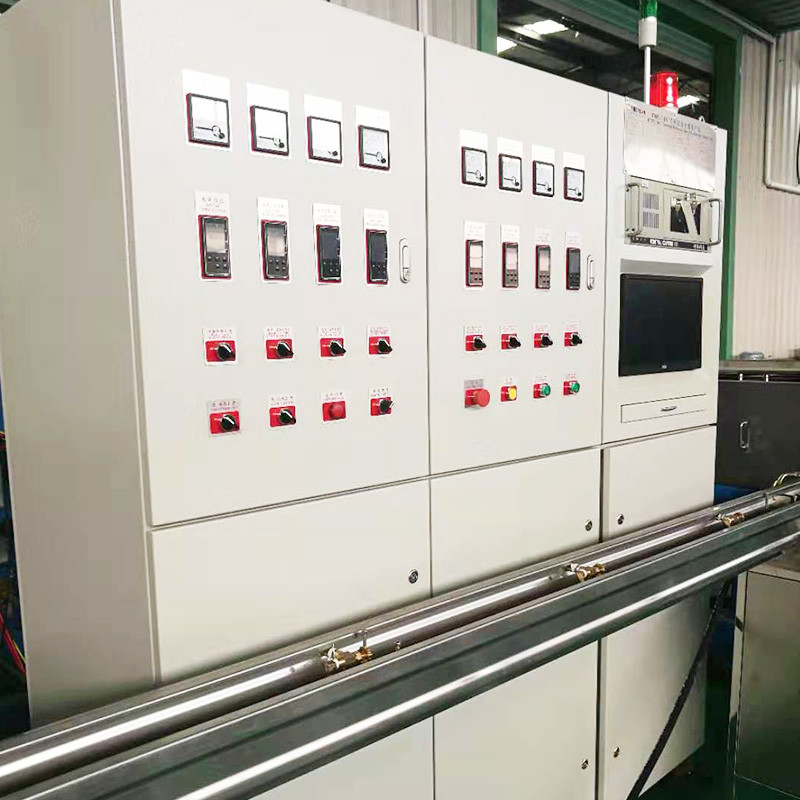

05. PLC+IPC FIBERCAN program electricity control cabinet;

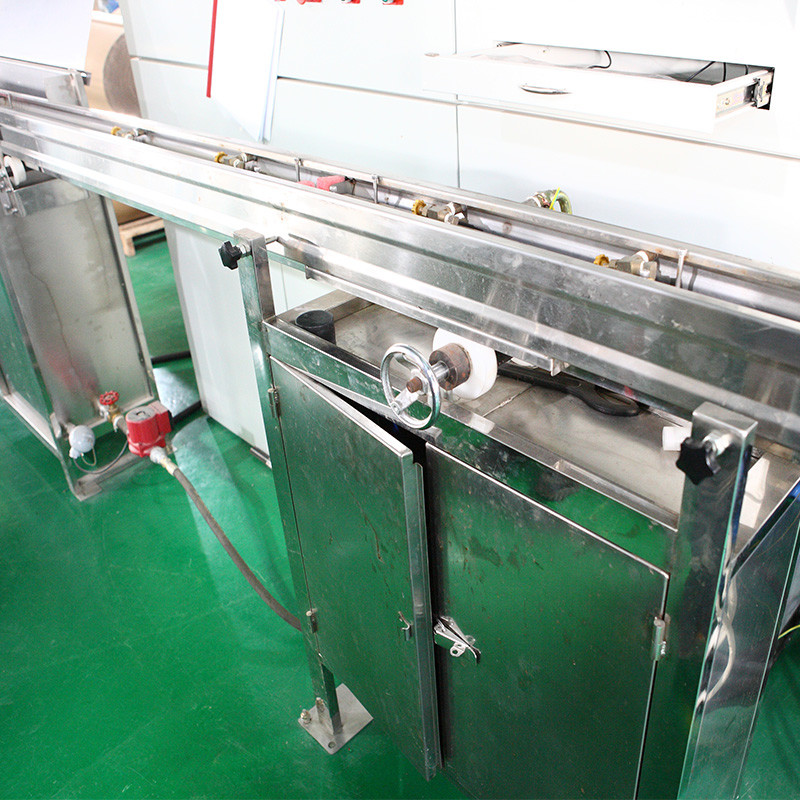

06. Movable water trough and warm water tank;

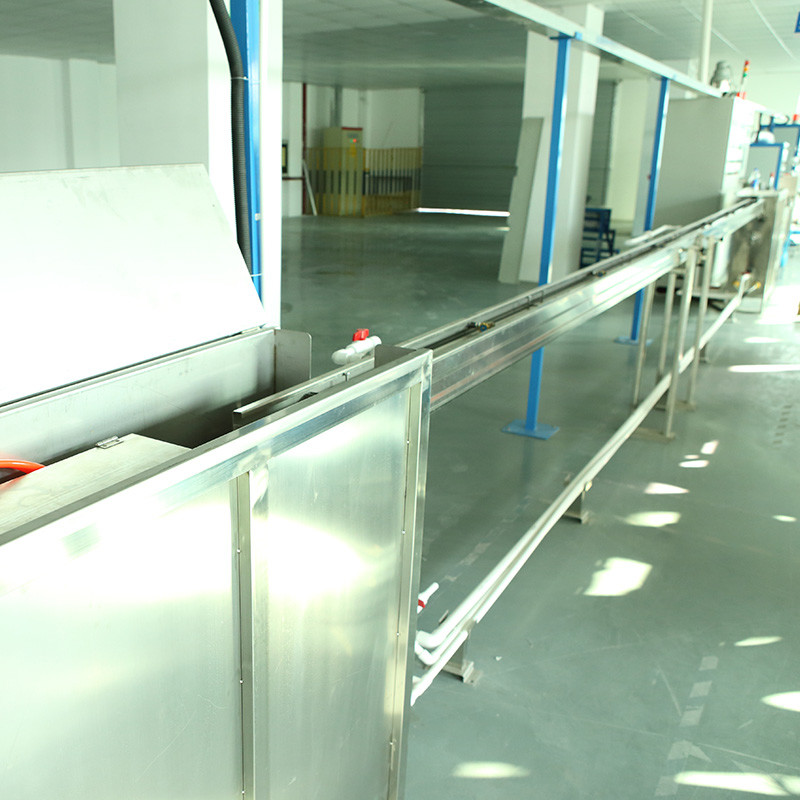

07. Cooling water trough and water tank;
08. Ink-jet printer stand device without ink-jet printer;

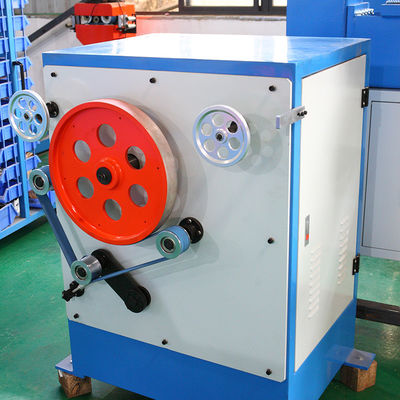

09. ￠400mm wheel capstan;

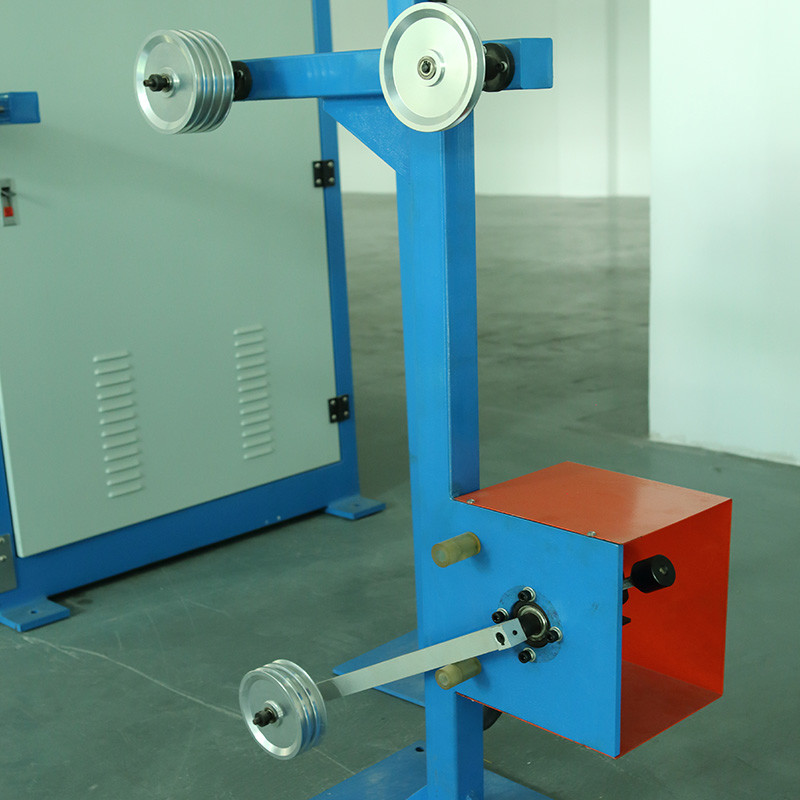

10. Tension unit;

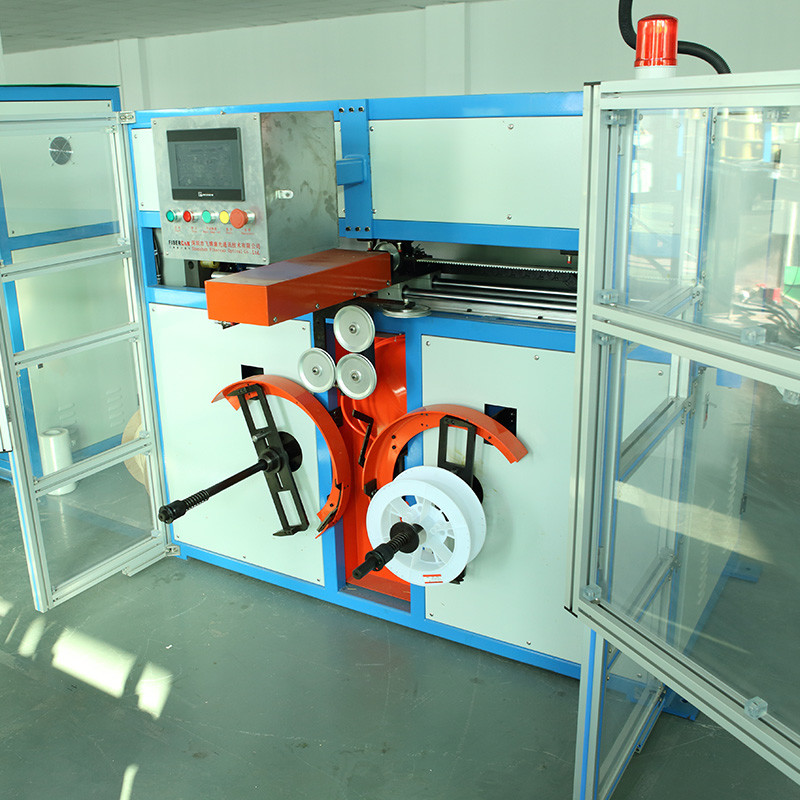

11. Take up machine (automatically switching take-up option available).
