Soft Fiber Cable Production Line Cable Wire Making Machine
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | cable production line,Soft Fiber cable production line,cable wire making machine |
||
|---|---|---|---|
Product Description

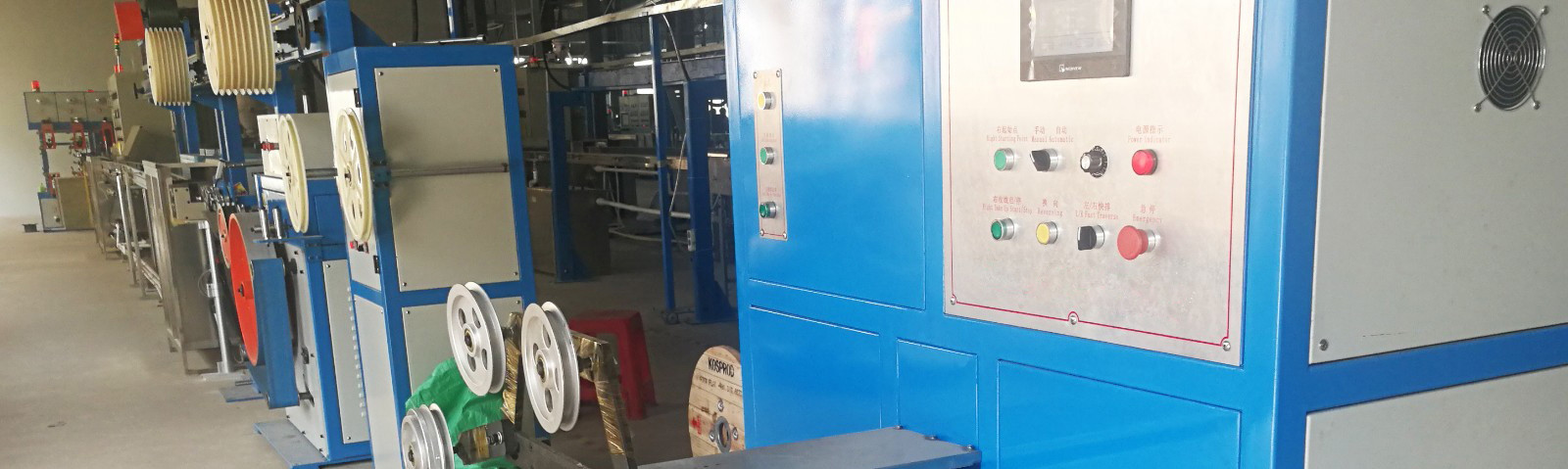

Rongbagn 50 Line Indoor Fiber Cable Production Line Soft Fiber Cable Line
Description
This fiber optic cable production line makes indoor sorft cables, outer diameter 5.0mm max.
Cable structures:
A. Simplex duplex patchcord cable outer diameter: 1.2/1.6/2.0/3.0mm, 0.6/0.9mm buffer fibers + Kevlar/aramid yarn strengthen members + LSZH/PVC sheath.
B. Multi core distribution cable outer diameter 5.0mm max., 6core 0.9mm buffer fibers +Kevlar/aramid yarn strengthen members + LSZH/PVC sheath.
C. Mini micro indoor fiber optical cable outer diameter 3.8mm max. up to 24core colored bare fibers +Kevlar/aramid yarn strengthen members + LSZH/PVC sheath.
And other similar optical fiber cables.
Machine component configuration is adjustable according process request.

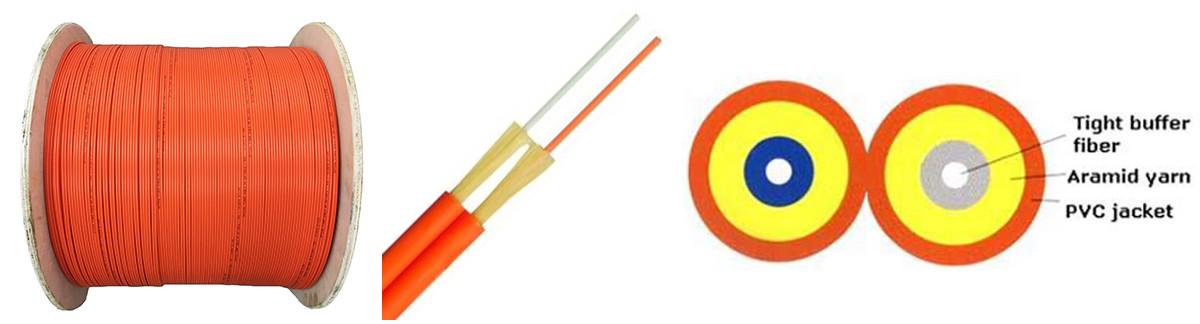

Finished cable:
Features:
1. Precision special extruder and precision fine adjustment machine head. The applicable materials for extruder are PVC, LSZH, PE, etc.
2. The surface of the cable is smooth.
3, Cable diameter automatic feedback control, diameter history curve can be traced back.
4. Optical fiber active release. The tension is precisely constant and the additional loss is small.
5. The temperature control is controlled by imported OMRON temperature control meter, and the temperature control is accurate.
6. The double-reel automatic winding line is stable and reliable in operation, and the automatic winding line is formed once, without rewinding.
7, International industrial computer technology control system with high degree of automation, it can be linked with MES, ERP systems, real time tracking and managing production.
8. The main control systems and components are international famous brands, and the production line has high stability and reliability.
Technical Parameters
| Parameter | Value |
| Structure speed | 190m/min |
| tightly set fiber diameter | 0.6MM-0.9MM |
| tight sleeve tension | 1N-3N |
| aramid line head | 10-16 head |
| aramid pay-up tension | 1N-3N |
| Production line length | ≤35M |
| Power supply requirements | 63KVA, AC380V ±10% 50HZ three-phase five-wire |
| Normarl machine running power consumes | ≈35KW/h |
| Production capacity | ≈11km/h( simplex cable), ≈5km/h( duplex cable) |
Line Configuration
01. Motorized buffer fibers pay-off ;
02.10 heads aramid yarn pay-off (motorized aramid yarn pay-off option available);
03.Mobile positioning mold support;
04.50 Extruder;
05.Dryer +hopper;
06.Industrial computor FIBERCAN program control cabinet;
07.Movable water trough and warm water tank;
08.4HP chiller
09.Fixed type cooling water trough and cooling water tank;
10.Diameter laser gauge;
11.Ink-jet printer stand device without ink-jet printer;
12.Φ640 wheeled capstan;
13.Cable accumulator;
14.630 take-up.
