Product Description

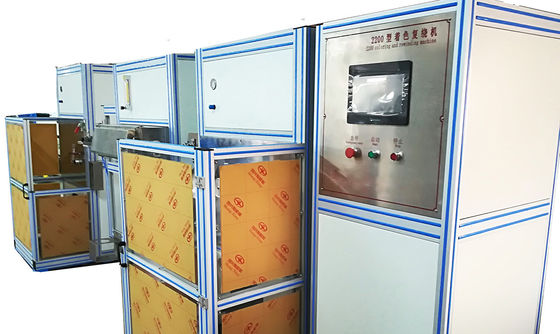

Rongbang RBTX-2200 High Speed Fiber Coloring Machine
RBTX-2200 fiber coloring rewinding machine is more higher producing speed than to meet customers' larger and larger production capacity, used for full color chromatographic coloring of bare fibers, which is convenient for identification of multi-fiber in the PBT fiber tube or micron cables. At the same time, the device can also be used for rewinding segmentation of optical fibers.
Famous international brand double UV curing oven is used to effectively improve the curing effect of bare optical fiber coloring. The equipment is controlled by Siemens 300 series PLC, with high automation and can operate multiple devices by one person.
Technical Parameters
| Parameter | Value |
| Structure speed | 2500m/min |
| coloring speed | 2200m/min |
| take-up tension | 0.3N-1.2N |
| take-up /pay-off reel sizes |
φ235mm * φ155mm * 25.4mm (outer diameter * inner diameter * shaft hole). Φ265mm*φ165mm*25.4mm (outer diameter * inner diameter * shaft hole). |
| additional loss | ≤ 0.02db / km (sm fiber) |
| power supply requirements | 30kva~AC380V ±10% 50HZ three-phase five-wire |
| Normal running power | 6KW/h |
| Coloring capacity | 90KM/h. |
Line Configuration
| NO. | Item | Qty. |
| 1 | Movable driven optical fiber pay-off device | 1SET |
| 2 | Pay-off tension control device | 1SET |
| 3 | Open and pressure type coating system | 1SET |
| 4 | UV Curing Oven(international brand) | 2SETS |
| 5 | Wheel haul-off device | 1SET |
| 6 | Movable Take-up and traversing device | 1SET |
| 7 | Electric apparatus, temperature main control cabinet (PLC control) | 1SET |
