Rongbang Secondary Coating Loose Tube Line High Speed
Description
This fiber secondary coating line is used for extruding 1~12/24 core optical fiber loose tube, the jacketing material is PBT, loose tube is round and smooth surface, its dimeter is uniform.
The high speed automatic take-up greatly reduces the labor intensity and operation safety of the workers, and can easily complete the reel change during high-speed production, ensuring the quality consistency of the entire product.
Features:

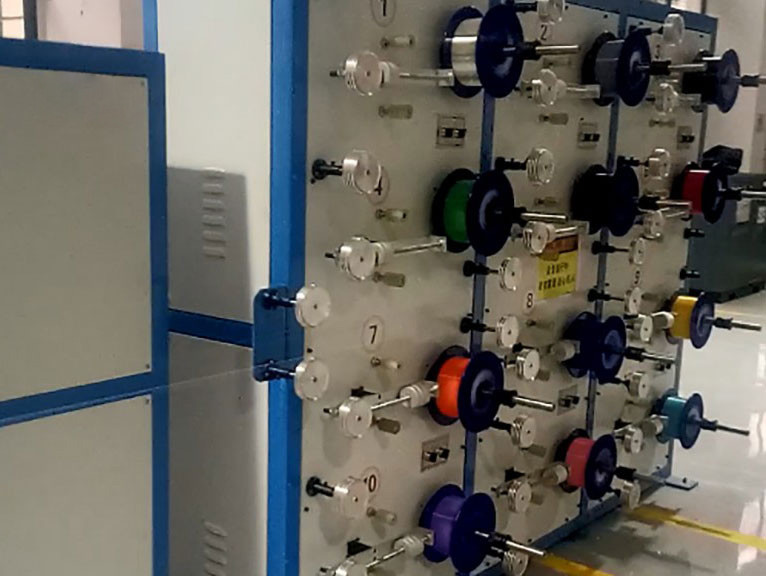

1. The optical fiber pay-off is the motorzed pay-off device, the tension of the pay-off line is stable and reliable, and the tension is adjustable.
2. The extruder adopts special screw, which has good extrusion linearity and high extrusion efficiency.
3 Jelly filling device has professional de-bubble effect, euipped with precision metering pump and a precision weighing device to ensure timely replenishment of ointment.

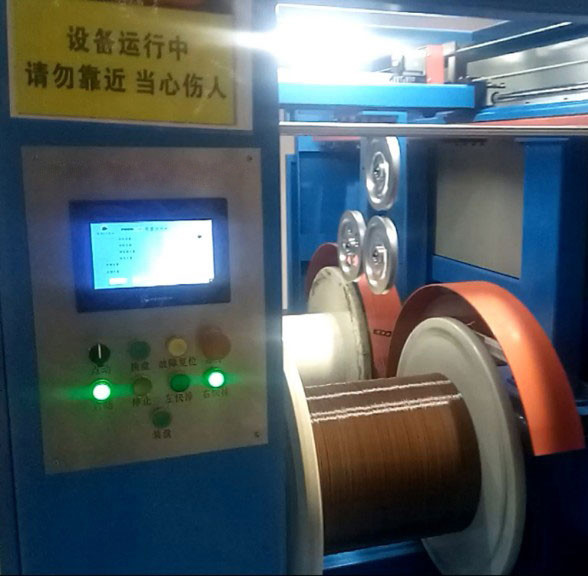

4·Take-up is double reels automatic changed without deceleration, and high production efficiency.

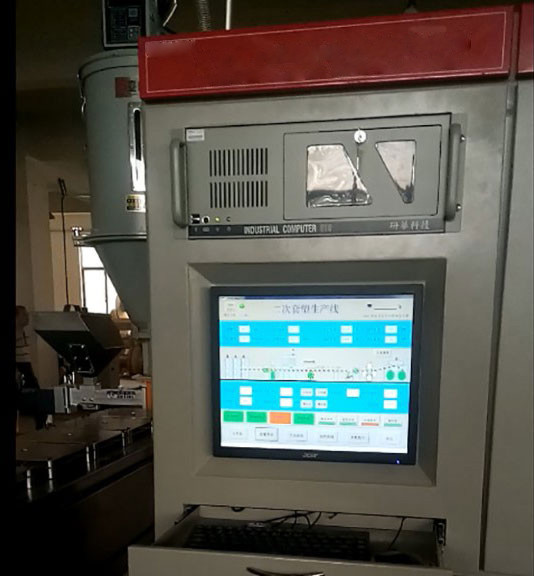

5. International industrial computer technology control system with high degree of automation, it can be linked with MES, ERP systems, real time tracking and managing production..
6 The main control systems and components are international famous brands, and the production line has high stability and reliability.
Technical Parameters
| Parameters | Value |
| Structure speed | 500m/min |
| Processing speed | about 400m/min(1.8mm PBT loose tube) |
| Pay-off number | 12 |
| Pay-off reel size |
φ235mm * φ155mm * 25.4mm (outer diameter * inner diameter * shaft hole) Φ265mm*φ165mm*25.4mm (outer diameter * inner diameter * shaft hole) |
| Take-up reel size | φ630-800mm |
| Additional loss | ≤ 0.02db / km (sm fiber@ 1310nm, 1550nm) |
| Length of production line | ≤30m |
| Power supply request | 70KW, AC380V ±10% 50HZ three-phase five-wire |
| Power consume | average about 40KW/h |
Line Configuration
01. Optical fiber active pay-off;
02. Static elimination device;
03. Jelly degassing and filling device;
04. 50 extruder group;
05. 50KG dryer and hopper;
06. PLC+IPC FIBERCAN program electry control cabinet;
07. 4 m mobile hot water tank + hot water tank ;
08. 630 wheel capstan+blowing dryer;
09. Tension unit;
10. Chiller;
11. 630 wheel capstan + cold water tank +blowing dryer;
12. Diameter laser gauge;
13. Take-up tension unit;
14. 800 Dual reels automatic switch take-up;
Above full set configuration is adjustable according different structure cables' production request.
