50 Line Indoor FTTH Drop Soft Cable Making Machine Processing
| Place of Origin | Dongguan, Guangdong, China |
|---|---|
| Brand Name | RBTX |
| Certification | ISO9001, ISO14001, ISO45001 |
| Model Number | RBTX-50-FTTHSF |
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Packaging Details | Wood Box |
| Delivery Time | 15 Work Days |
| Payment Terms | 100% Advance T/T EXW Dongguan |
| Supply Ability | 10 Set/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | cable processing machine,Soft Cable Making Machine,cable making machine |
||
|---|---|---|---|
Product Description
Rongbagn 50 Line Indoor Fiber Cable Production Line FTTH Drop Soft Cable Line
Description
This is a comprehensive 50 extruding production line, makes both FTTH drop flat cables and indoor soft cables. A cost effective machine solution.
To make cable structures:
A. Simplex duplex patchcord cable outer diameter: 1.2/1.6/2.0/3.0mm, 0.6/0.9mm buffer fibers + Kevlar/aramid yarn strengthen members + LSZH/PVC sheath.
B. Multi core distribution cable outer diameter 5.0mm max., 6core 0.9mm buffer fibers +Kevlar/aramid yarn strengthen members + LSZH/PVC sheath.
C. Mini micro indoor fiber optical cable outer diameter 3.8mm max. up to 24core colored bare fibers +Kevlar/aramid yarn strengthen members + LSZH/PVC sheath.
D. FTTH drop fiber optic cable 2.0x3.0mm, 2.0x5.0mm. Cable structure: bare fibers + steel wires/FRP strengthen members + LSZH/PVC/PE sheath.
And other similar optical fiber cables.
Technical Parameters
| Parameter | Value |
| Structure Speed | 190m/min |
| Tight Buffer Fiber Diameter | 0.6mm-0.9mm |
| Tight Buffer Tension | 1N-3N |
| Fiber tension | 0.4N-1.2N±0.05N |
| aramid line head | 10-16 head |
| aramid pay-up tension | 1N-3N |
| Production line length | ≤35M |
| Power supply requirements | 63KVA, AC380V ±10% 50HZ three-phase five-wire |
| Normarl machine running power consumes | ≈35KW/h |
| Production capacity |
≈11km/h( simplex cable); ≈5km/h( duplex cable); ≈9km/h( ftth cable 2.0X3.0mm); ≈7km/h( ftth cable 2.0X5.0mm) |
Line Configuration
01.Φ800 Stengthen member bigger steel wire pay-off;
02.Buffer fibers +2head FRP/ small Steel wire pay-off;

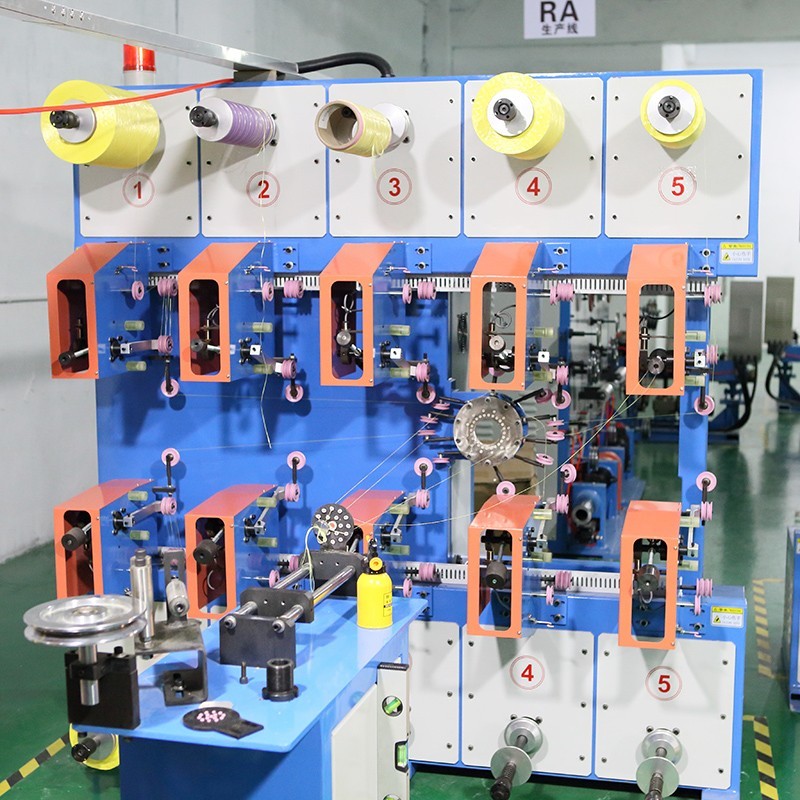

03.10 heads aramid yarn pay-off (motorized aramid yarn pay-off option available);
04.Mobile positioning mold support;
05.50 Extruder;
06.Dryer +hopper;
07.Industrial computor FIBERCAN program control cabinet;
08.Movable water trough and warm water tank;
09.4HP chiller
10.Fixed type cooling water trough and cooling water tank;
11.Diameter laser gauge;
12.Ink-jet printer stand device without ink-jet printer;
13.Φ640 wheeled capstan;
14.Cable accumulator;
15.630 take-up.
Machine component configuration is adjustable according process request.
