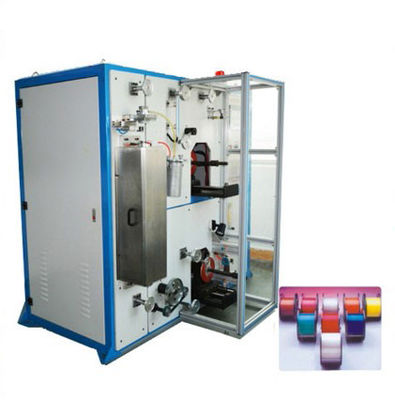

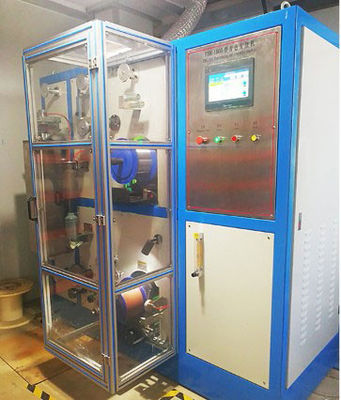

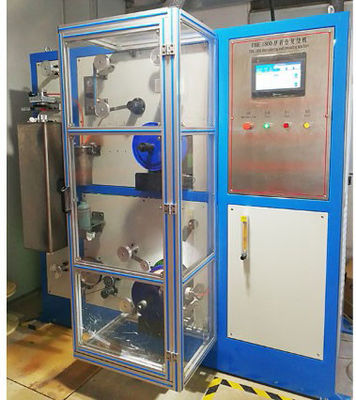

Rongbang RBTX-1800 Fiber Coloring Rewinding Machine for Fiber Optic Cable Production
RBTX-1800 fiber coloring rewinding machine is mainly used for full color chromatographic coloring of SM and MM fibers, which is convenient for identification of multiple fibers in the PBT fiber tube or micron cables. At the same time, the device can also be used for rewinding segmentation of optical fibers.
This device CE certificate is available.
Features:

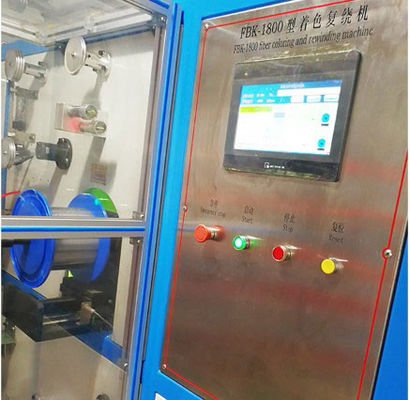

Famous international brand UV curing oven is used to effectively improve the curing effect of bare optical fiber coloring. The equipment is controlled by Siemens 300 series PLC, with high automation and can operate multiple devices by one person.
Technical Parameters
| Parameters | Value |
| Structure speed | 1800m/min |
| take-up tension | 0.3N-1.2N |
| take-up /pay-off reel sizes |
φ235mm * φ155mm * 25.4mm (outer diameter * inner diameter * shaft hole). Φ265mm*φ165mm*25.4mm (outer diameter * inner diameter * shaft hole) |
| additional loss | ≤ 0.02db / km (sm fiber) |
| equipment size | 2.1m * 1.5m * 1.9m (L * W * H) |
| power supply requirements | ~AC380V ±10% 50HZ three-phase five-wire |
| the total power supply | ≈ 13KW |
| Normal running power | 6KW/h |
| Coloring capacity | 90KM/h |
